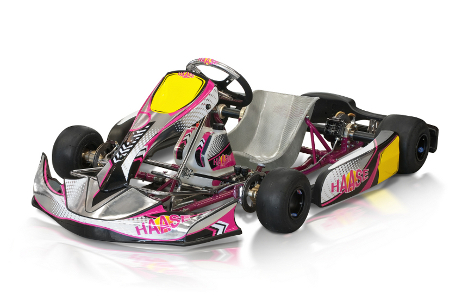

IKON KZ 125CC
Homologation:
CIK/FIA 90/CH/14

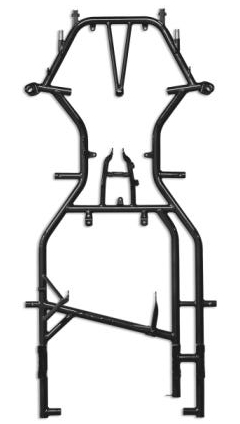

Main frame tubing:
Cr-Mo steel 30/32mm
Wheelbase:
1040mm
Rear axle:
40 o 50 Ø mm, black, with 3 positions adjustable ride height
Braking system:
(CIK/FIA 132/FR/14)
Brake lines:
braided steel, silver
Rear brake disk:
Self-ventilated floating rear disk, in cast-iron, 190mm Ø, thickness 16mm
Front brake disk:
Self-ventilated, in cast-iron, Ø 160mm, thickness 11mm with front magnesium brake disk carrier

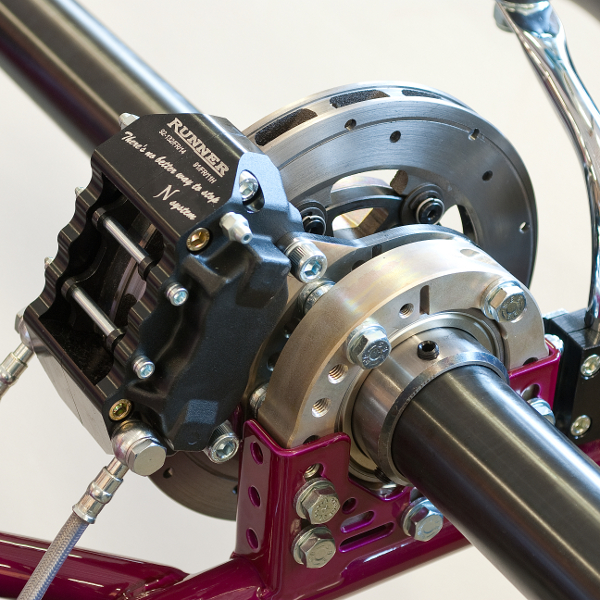

Rear brake caliper:
Black anodized, special alloy forged caliper, 4 pistons, self-adjusting
Front brake calipers:
Black anodized, special alloy forged caliper, 2 pistons, self-adjusting

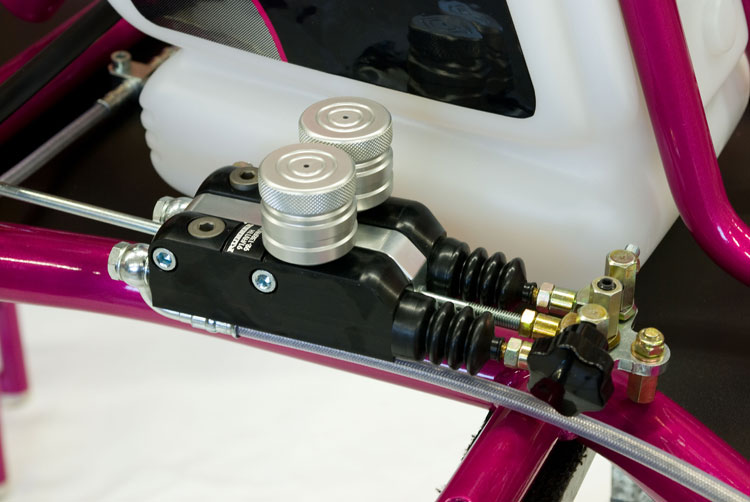

Brake pump:
Double-circuit brake master cylinder with aluminium oil recovery tank
stub axle:
25mm hollow, with 10mm precision ground king-pin bolt
Steering wheel:
320 Ø mm, leather with embroidery
Wheels:
Black magnesium wheels, low volume, 212-132mm
Chassis set up:
16 positions adjustable caster/camber pills
front ride height
Adjustable Ackerman
Complete front stabilizer
Features:
Magnesium accessories

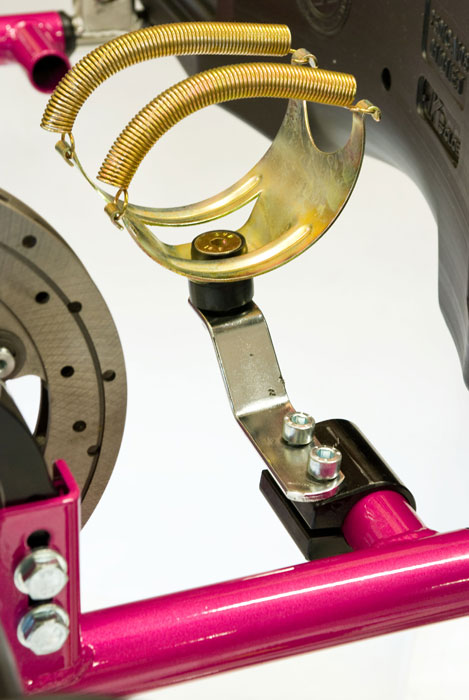

Adjustable exhaust holder bracket
Axle bearing flange with 5 fixing holes
Bearing axle locking adjustment screw
Smooth running axle bearings
Adjustable feet support
Seat:
Flat bottom, light weight, clear fiberglass
Bodywork:
CIK/FIA homologated
Graphics:
Complete set, high thickness
Rear bumper:
CIK/FIA homologated rear plastic protection
Options at extra charge:
Side torsion bar
Rear torsion bar
Aluminium pedals
Chain guard closed type
