You are on: PRODUCTS > CHASSIS

Mistral KZ
Mistral frame

Mistral frame

Mistral chassis

Mistral chassis

Mistral chassis

Mistral chassis



Mistral pedal

brochure Mistral



MISTRAL KZ 125CC

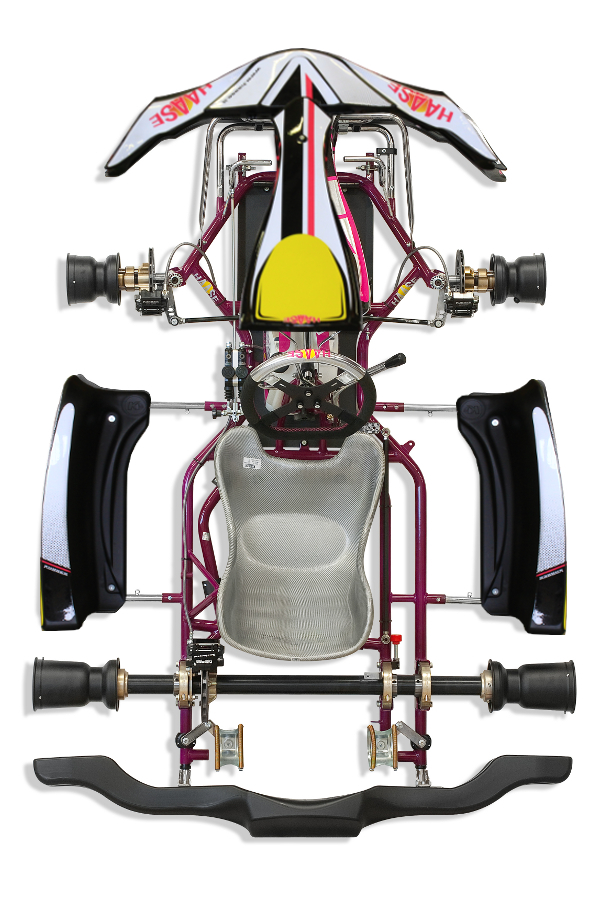

Mistral KZ chassis


Homologation:CIK/FIA 62/CH/17
Main frame tubing:Cr-Mo steel 30mm
Wheelbase:1040mm
Rear axle:40 o 50 Ø mm, black, with 3 positions adjustable ride height
Braking system:runner (CIK/FIA 132/FR/14)
Brake lines:braided steel, silver
Rear brake disk:Self-ventilated floating rear disk, in cast-iron, 190mm Ø, thickness 16mm
Front brake disk:Self-ventilated, in cast-iron, Ø 160mm, thickness 11mm with front magnesium brake disk carrier
Rear brake caliper:Black anodized, special alloy forged caliper, 4 pistons, self-adjusting
Front brake calipers:Black anodized, special alloy forged caliper, 2 pistons, self-adjusting
Brake pump:Double-circuit brake master cylinder with aluminium oil recovery tank
stub axle:25mm Ø hollow, with 10mm precision ground king-pin bolt
Steering wheel:340 Ø mm, leather with embroidery
Wheels:Black magnesium wheels, low volume, 212-132mm
Chassis set up:
  • 16 positions adjustable caster/camber pills
  • front ride height
  • Adjustable Ackerman
  • Complete front stabilizer
Features:
  • Magnesium accessories
  • Adjustable exhaust holder bracket
  • Axle bearing flange with 5 fixing holes
  • Bearing axle locking adjustment screw
  • Smooth running axle bearings
  • Adjustable feet support
Seat:Flat bottom, light weight, clear fiberglass
Bodywork:CIK/FIA homologated
Graphics:Complete set, high thickness
Rear bumper:CIK/FIA homologated rear plastic protection
Options at extra charge:
  • Side torsion bar
  • Rear torsion bar
  • Aluminium pedals
  • Chain guard closed type
