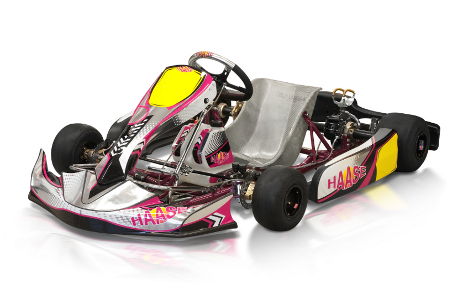

Spirit
Spirit chassis

Spirit chassis

Spirit chassis

Spirit chassis

Spirit chassis



Spirit chassis



Download brochure
brochure spirit



SPIRIT KF-TAG-ROTAX
Spirit chassis




Homologation:CIK/FIA 26/CH/11

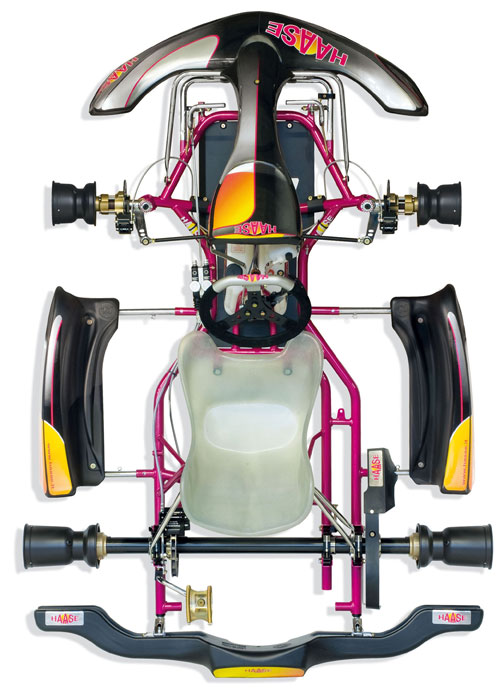

Main frame tubing:Cr-Mo steel 30/32mm
Wheelbase:1040mm
Rear axle:40 o 50 Ø mm, black, with 3 positions adjustable ride height
Braking system:Runner (CIK/FIA 92/FR/14)
Brake lines:braided steel, silver

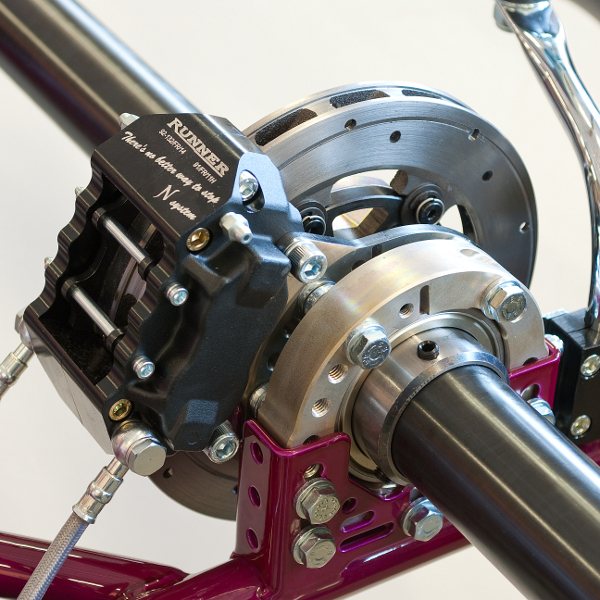

Brake disk:Self-ventilated floating rear disk, in cast-iron, 190 mm Ø, thickness 16 mm
Rear brake caliper:Black anodized, special alloy forged caliper, 4 pistons, self-adjusting

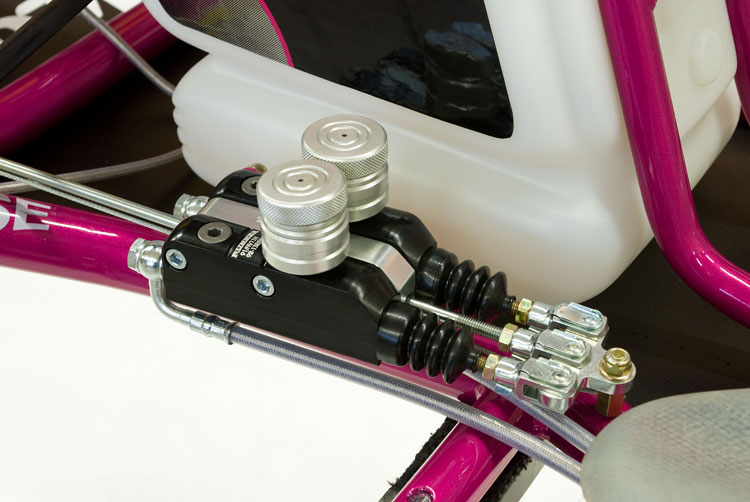

Brake pump:Double-circuit brake master cylinder with aluminium oil recovery tank
Stub axle:25mm Ø hollow, with 10mm precision ground king-pin bolt

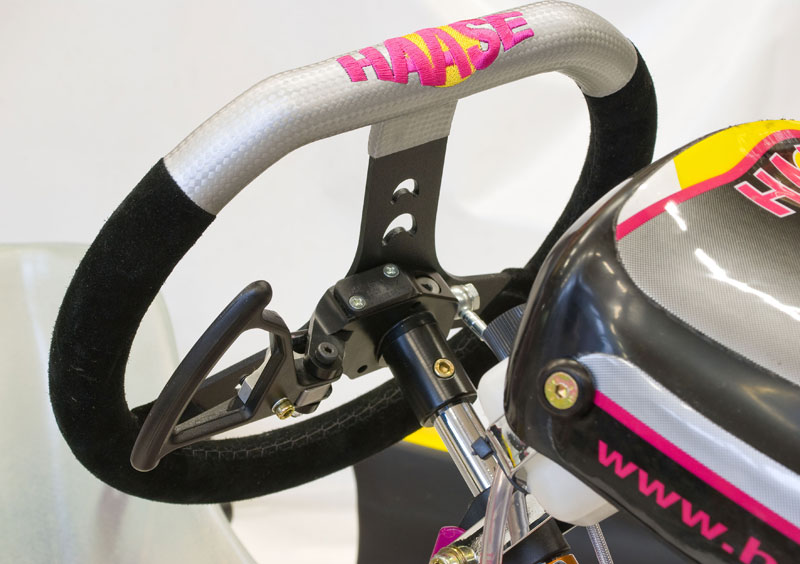

Steering wheel:320 Ø mm, leather with embroidery
Wheels:Black magnesium wheels, low volume, 212-132mm
Chassis set up:
  • 16 positions adjustable caster/camber pills
  • Front ride height
  • Adjustable Ackerman
  • Complete front stabilizer
Features:
  • Magnesium accessories
  • Exhaust holder bracket

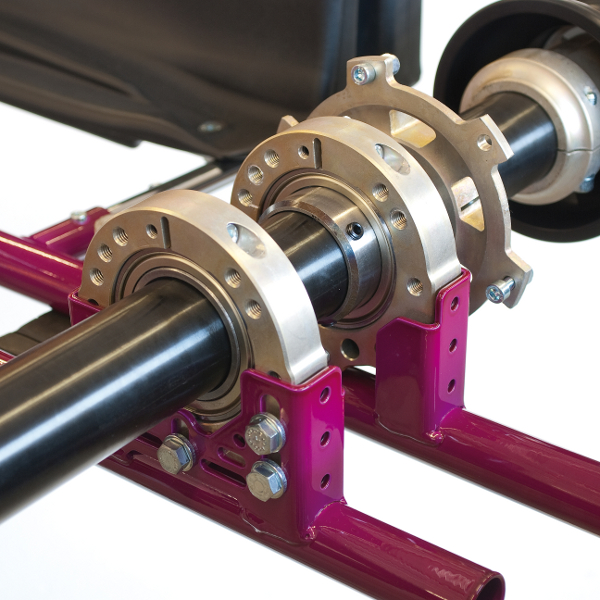

  • Axle bearing flange with 5 fixing holes
  • Bearing axle locking adjustment screw
  • Smooth running axle bearings
  • Adjustable feet support
Seat:Flat bottom, light weight, clear fiberglass
Bodywork:CIK/FIA homologated
Graphics:Complete set, high thickness
Rear bumper:CIK/FIA homologated rear plastic protection
Chain guard:Closed type KG
Options at extra charge:
  • Aluminium pedals
  • Side removable bar
  • Rear torsion bar

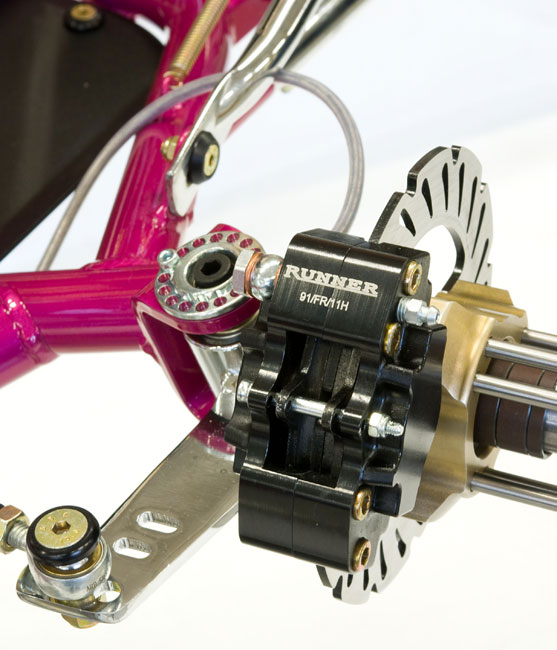

  • front hand braking system runner 91/FR/11H
  • Magnesium engine mount with clamps
