Junior
fron

chassis

brake

junior

junior

junior



junior



Download brochure
brochure junior



Junior chassis

Main frame tubing:Cr-Mo steel 28mm
Wheelbase:1010mm - 1020mm
Rear axle:30 o 40mm Ø, black, with 2 positions adjustable ride height
Braking system:Runner CADET FR14
Brake lines:Braided steel, silver
Brake disk:Floating rear disk, 160mm Ø, 4mm thickness
Rear brake caliper:Runner CADET FR14 special alloy forged hydraulic caliper, self-adjusting

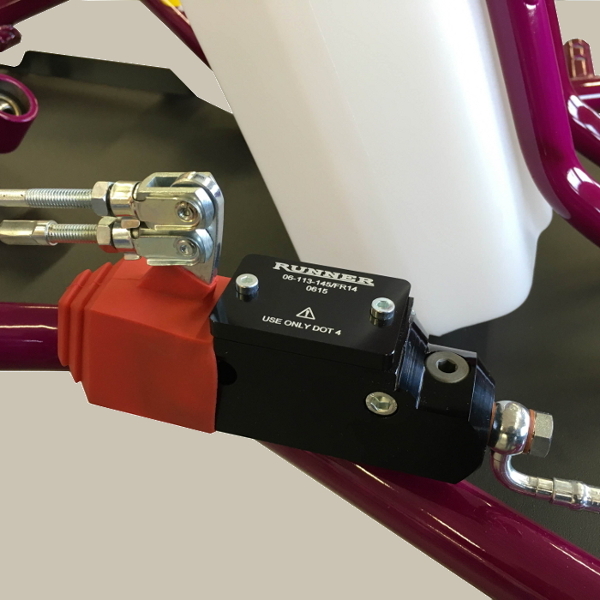

Brake pump:Runner CADET FR14 Double-circuit brake master cylinder with oil recovery tank
Stub axle:17mm with 8mm precision ground king-pin bolt
Steering wheel:320mm Ø, leather with embroidery
Wheels:Aluminium, 180-130mm
Chassis set up:
  • 16 positions adjustable caster/camber pills
  • Front ride height
  • Adjustable Ackerman
  • Complete front stabilizer
Features:
  • Magnesium accessories
  • Exhaust holder bracket, adjustable height and rotation
  • Axle bearing flange with 3 fixing holes
  • Bearing axle locking adjustment screw
  • Smooth running axle bearings
Fuel tank:Removable 5 lt.
Seat:Flat bottom, light weight, clear fiberglass
Bodywork:CIK/FIA homologated
Graphics:Complete set, high thickness
Rear bumper:Adjustable rear plastic protection
Options at extra charge:
  • Stub axle 25mm with 10mm ground king-pin bolt
  • Front wheel hubs
  • Closed type chain guard
  • Rear torsion bar
  • Front hand braking system Runner 91/FR/11H
  • Runner cadet single-brake pump FR14
  • self-ventilated brake disk 160x11mm Ø
  • Runner KF brake system FR14
  • Magnesium engine mount with clamps
